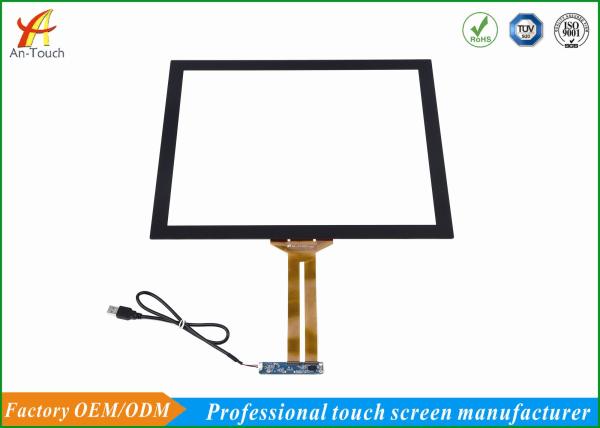

Customized Dimension 19 Inch Projected Capacitive Touch Screen
Panel For Kiosk machine
Product details
| Item | Specification |
| Screen size | 19.0 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Structure & Operating Principle:
Capacitive touch screen is a piece of 2 layer of compound glass
with double side transparent conductive coating that conducts a
continuous electrical current across the sensor.
There is electrode pattern printed along the edges distributes a
low voltage filed over the conductive layer.
The human body is also an electrical device which has stored
electrons and therefore also exhibits capacitance.
When a finger touches the screen and draws a minute amount of
current to the point of contact ,creating a voltage drop.
The current flow from each corner is proportional to the distance
to the touch point. During a touch ,capacitance forms between the
finger and the sensor grid. The touch location is calculated from
the changing electrical characteristics of the sensor grid.
Projected Capacitive Touch Screen Features:
■Glass to glass structure.
■1.1mm to 6mm temperted glass.
■Support cover/size customized.
■4096×4096 Resolution with linearity error ≤2mm.
■Size available from 7inch to 65inch.
■Multi-touch 1 to 10 touch points.
■Tempered scratch proof cover glass with high impact resistance.
Development process:
■Receive customer's technical files, including PCAP drawing, LCD
specification.
■Recommend standard products or customize products based on
customer's requirements.
■Offer engineering drawing for confirmation and fill in project
kick-off form.
■Make samples according to the confirmed drawing.
■Debug the samples based on the information on kick-off form, keep
the FW.
■Send the samples to customers for confirmation. Offer all the
technical supports with which customer will let the touch panels
work well.
■Pilot production.
■Mass production.
Application:
■Point-of-information kiosks.
■Vending and ticket sales.
■Electronic catalogs.
■Gaming, lottery, and amusement.
■Public pay phones.
■Multimedia marketing.
■Banking/financial transactions.
■Industrial control rooms.
■Computer-based training.
Delivery Time:
■Samples in stock: 1~3 working days.
■Customized project: 10~15days for samples.
■Mass production: 10~18days.
